Magica

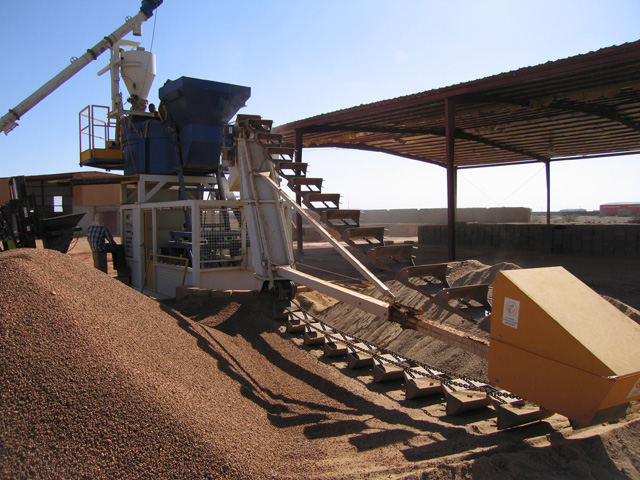

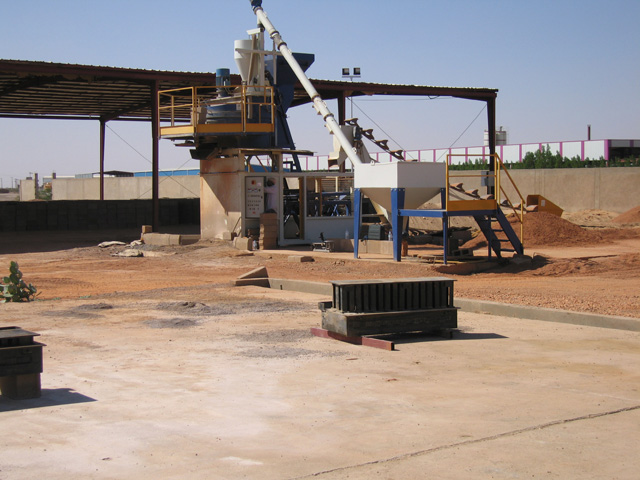

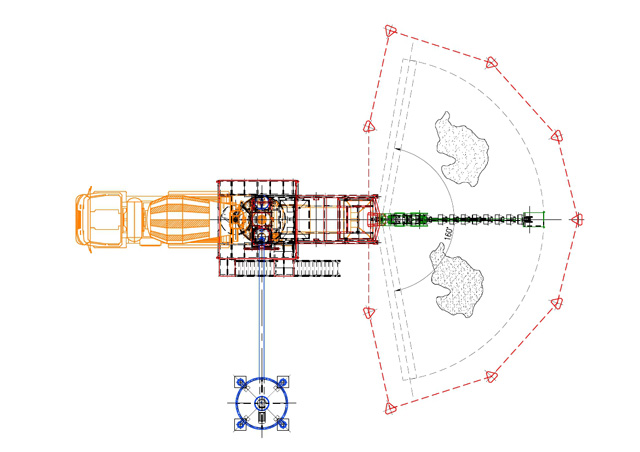

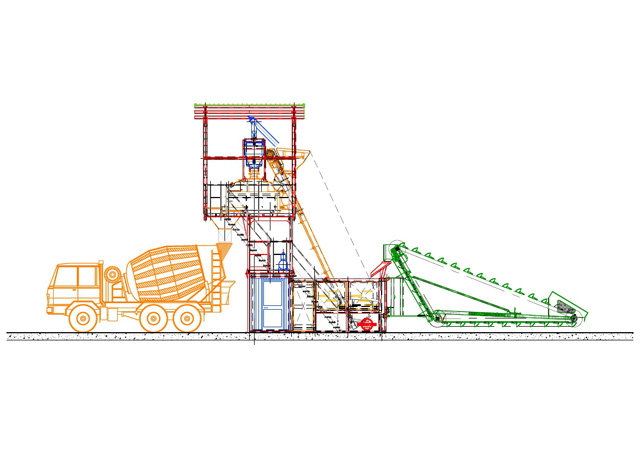

Batching plant with aggregates loading system with scraping radius.
- Mixing system with planetary mixer at forced speed
- Bottom and sides of the tank in interchangeable wear-resistant panels
- Shovels in special wear-resistant alloy Ny-Hard CH3
- Unloading door complete with oil-dynamic cylinder
- Cement batched in a separate hopper with nr. 1 loading cell
- Aggregates weighted into the skip with nr. 3 loading cells
- Electro-mechanical emergency with carter and tearing cord

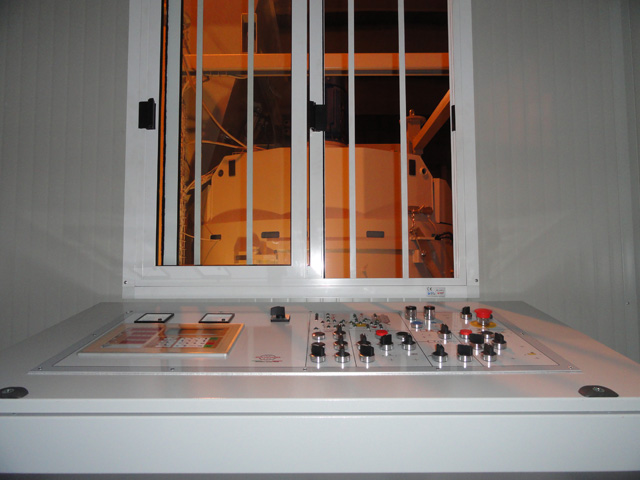

- Control panel Manual/Automatic 20 formulas and 300 formulas for MAGICA 1500 et 1850
| Technical Data | Mod. 750 | Mod. 1125 | Mod. 1500 | Mod. 1850 |
|---|---|---|---|---|
| Support structure | 1 | 1 | 1 | 1 |
| Planetary mixer 1 unloading door complete of skip with anti-dust door | 500 | 750 | 1000 | 1250 |
| Convoyor chute | 1 | 1 | 1 | 1 |
| Ladder, ballatory and parapets | 1 | 1 | 1 | 1 |
| Cement batcher with nr. 1 laoding cell | 250 lt. | 400 lt. | 500 lt. | 650 lt. |

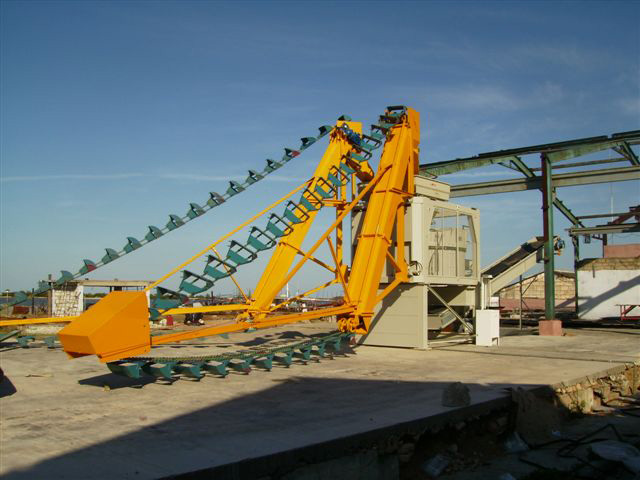

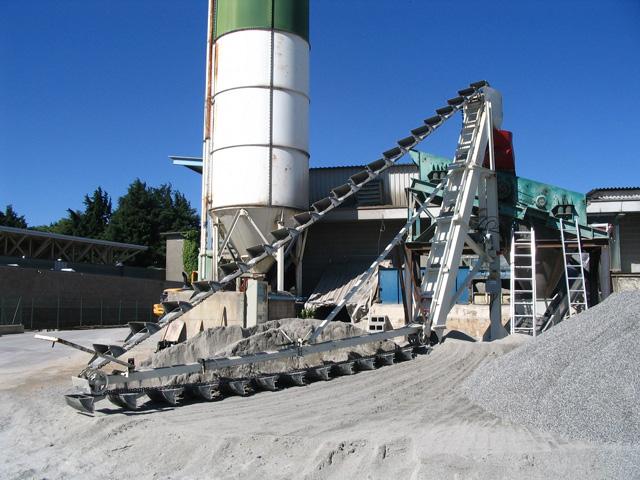

| Scraping radius | 35 tazze | 36 tazze | 39 tazze | 40 tazze |
| Automatic water tank with liters-counter | 200 lt. | 200 lt. | 300 lt. | 300 lt. |
| Compressor | 100 lt. | 100 lt. | 100 lt. | 100 lt. |
| Water pump | 1 | 1 | 1 | 1 |
| Control cabin | Manuale / Automatico 20 ricette | Manuale / Automatico 300 ricette | ||
| Printer 22 colums | 1 | 1 | 1 | 1 |
| Command post boarding machine | 1 | 1 | 1 | 1 |
| Tank capacity | 1600 lt. | 1900 lt. | 2350 lt. | 3500 lt. |
| Installed power | 31 kw | 48 kw | 58 kw | 66 kw |
| Fresh concrete | 600 lt. | 900 lt. | 1200 lt. | 1500 lt. |
| Weighing bucket with 3 loading cells | 1 | 1 | 1 | 1 |
| Cement silos | 1 | 1 | 1 | 1 |
| Ground filter | 1 | 1 | 1 | 1 |
| Cement screw | Ø 168 | Ø 193 | Ø 219 | Ø 219 |
